X10 House Controller
Home | Network Status | Computers
  DEC PDP-8
  DEC PDP-11
  DEC PDP-14
  VAX
  IBM S/34
 | Projects
  MC68k
  X10
  Wine
  LEGO 		| Interests
  Atomic Clock
  Impala 		| Local Weather
Help

This was a project I worked on in the spring of 2000.

Features:
  • 12 inputs
  • 12 outputs
  • PIC16F84 processor w/ 10MHz clock
  • 7-channel 12-bit Analog to Digital Converter

Front Side

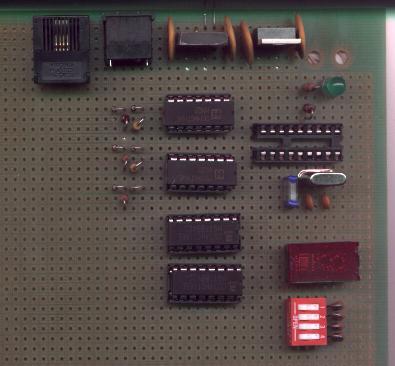

Front Side.
Back Side

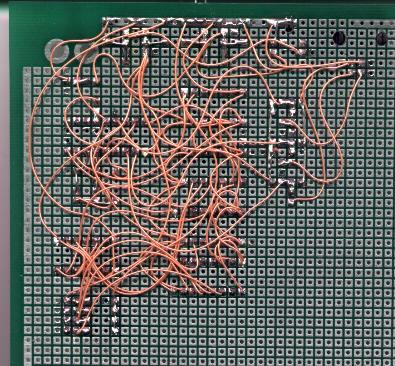

Back Side.
